Using QuickPwn (with 2.2 firmware)

intel Mac & PPC

Updated: November 24, 2008





Who is this guide for?

• 3G iPhones owners (who don't care about an unlock - potentially never).
• Officially unlocked 3G iPhones.
• Make sure to sync your iPhone prior to using this tutorial. This way your personal information, and any App Store applications will be preserved.
• I used iTunes version 8.0.2.

Thanks again go out to the iPhone Dev Team for providing this amazing, and FREE program for jailbreaking, activating, and customizing the 1st generation and 3G iPhones. You can visit their website here.

Here is an excerpt from the iPhone Dev Team's website about QuickPwn:



My 3G iPhone was running 2.1 firmware (and on 2.11.07 baseband) and was updated to 2.2 with iTunes normally. This iPhone is on a contract and was fully personalized. In this case, I don't care if this phone can be unlocked (I do have another 3G that I do care about the unlock that I wrote an PwnageTool guide for). This particular 3G iPhone was also previously Pwn'd, although you don't have to be to use this tutorial.

Apple has an excellent support document regarding update and restore error messages on the iPhone. Should you have any troubles, consult this article.

Step 1.

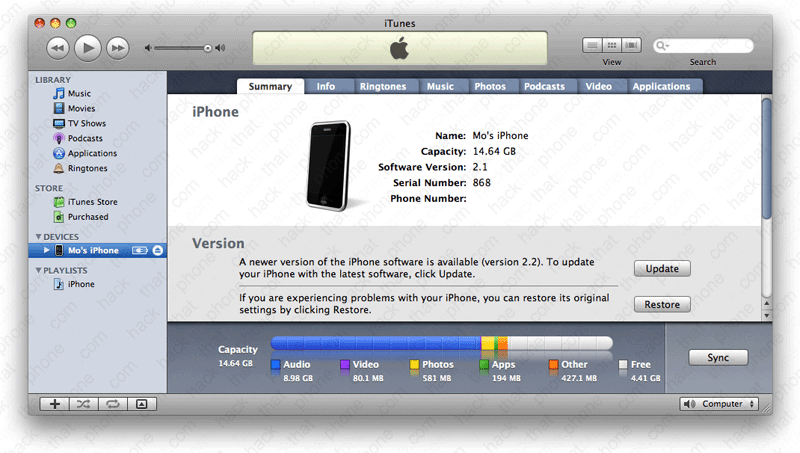

Launch iTunes and plug in your iPhone. Then click the Update button.

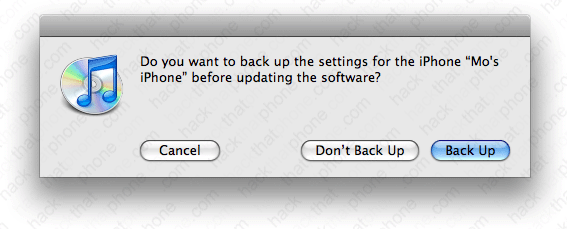

You will be asked if you'd like to back up your iPhone first.




The iPhone was backed up, and then updated.




During the update process you will see a status bar graphic on the iPhone.




When it has finished updating, you'll receive this message.




iTunes will confirm the iPhone is on 2.2 firmware. Notice all my music and photos, et cetera are still intact.

Step 2.

Download QuickPwn 2.2 from me here, or via the iPhone Dev Team's download link list here.

Install QuickPwn. Make sure to drag the program icon from the disk image into your Applications folder!   Do not attempt to run the program from the disk image window, it will cause problems.

Step 3.

Launch QuickPwn. Connect your iPhone and then click OK.




QuickPwn will detect your device.




QuickPwn will then search for the 2.2 firmware on your Mac. Since you just updated, it will be easy to find.





You will be asked if you would like to switch out the standard Apple boot logo, and restore screen which shows a USB cable pointing at the iTunes program logo.






You will get a PwnApple (pineapple) for the boot logo, and a Steve Jobs caricature for the restore screen if you select yes. Otherwise, select no to leave them alone.




Your custom 2.2 firmware file (.ipsw) will now be compiled.




QuickPwn will prompt you for your system password. There is nothing nefarious in this request, the reason it is asking (and PwnageTool asks) is because it is creating your firmware and running commands as the root account (or superuser) on your computer. There are various processes where unmounting and mounting of a file systems is necessary. This is performed while using a system UID of 0 which causes the prompt for a system password. The root access is only for the creation of the ipsw file. So it's completely harmless.




Now simply follow the on screen prompts for putting your iPhone into DFU mode. First press the Sleep/Wake (or power) button to turn the iPhone off.




You will get 5 seconds to get your fingers in place to press and hold the Sleep/Wake (power) and Home buttons. Then hold them for 10 seconds.





Then release the Sleep/Wake (power) button.




Continue holding the Home button for 10 seconds.




A couple files will be sent, and iTunes should launch. You may get a pop up message citing error 2001 or similar. Just click ok.




You will also get a pop up about your iPhone being in recovery mode. Once again just click OK. I just dragged iTunes out of the way at this point.




It will then send the 018-4378-1.dmg file, and some others.




You should see the Pwnage logo on your iPhone at this point, or the Apple logo if you decided not to change it.




You should then receive this message. Understand what it says, then click OK and wait. This stage took about three minutes.




You will see a few different messages (Replacing kernel, Flashing NOR, Installing bundles, Syncing file systems) on your iPhone during these three minutes.




You should then see the success message. If it fails, then repeat the process. The process could fail for numerous reasons, the least of which being you were running (or trying to run) a memory or CPU intensive program in the background at the same time, et cetera.




The iPhone will reboot. If your iPhone was already personalized, it should still be that way. iTunes will confirm that you are still on 2.2 firmware, and that your photos and videos, et cetera are still present.




The only changes should be that Cydia and Installer have been added to your SpringBoard. Note: My Wi-Fi was not available. I rebooted the iPhone again, and the Wi-Fi service returned.




You can confirm your firmware versions here. You are on 2.2 firmware with the new modem firmware. You are finished.
